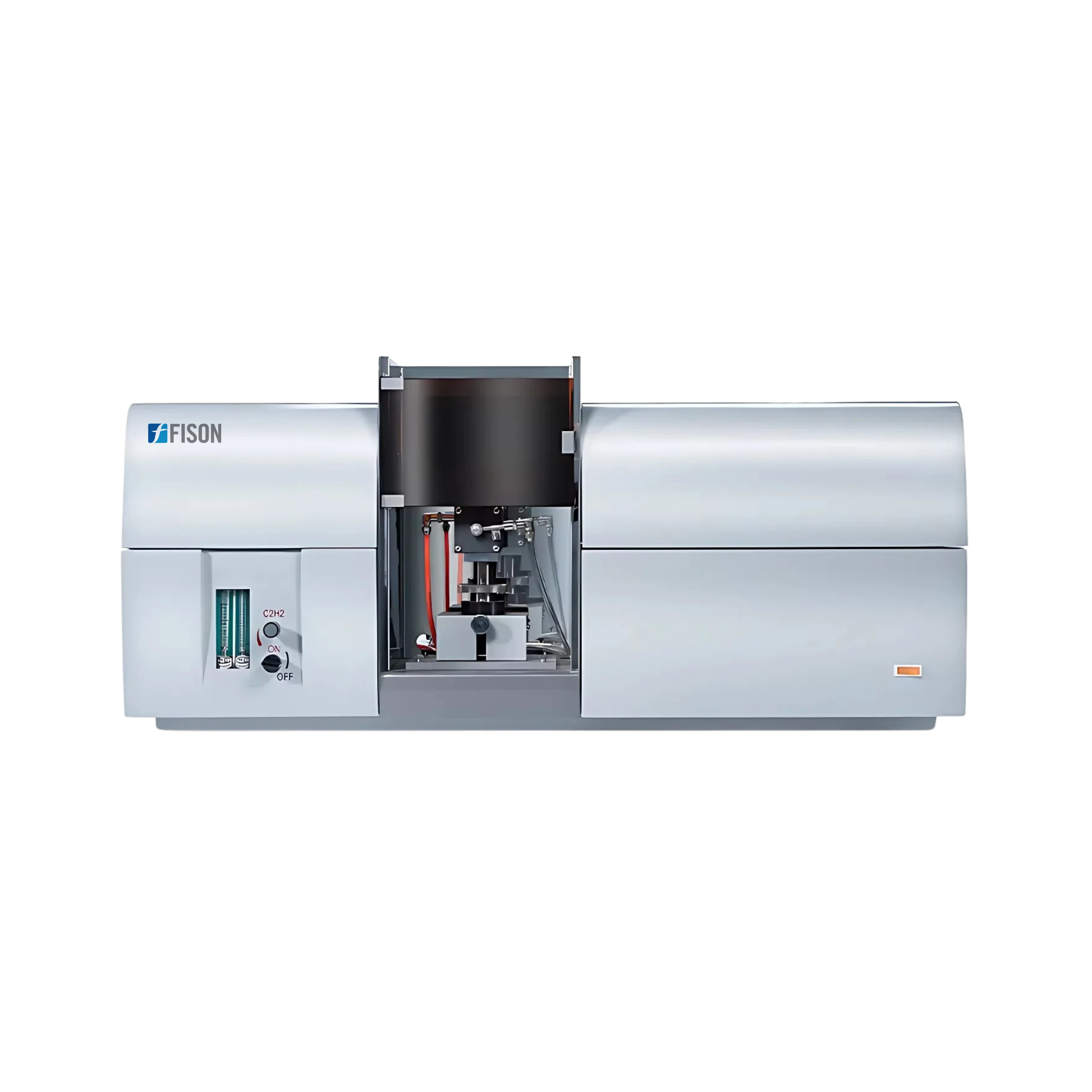

Atomic Absorption Spectrophotometer FM-AAS-A101 offers a wide wavelength range of 185 to 900 nm for versatile element detection. Its high-resolution grating with 1800 lines ensures precise and accurate spectral analysis. It supports multi-lamp preheating and high-performance element lamp options for fast analysis. Our spectrophotometer also features user-friendly software and real-time data monitoring for accurate analysis.
$17,150.00
| Wavelength Range | 185 to 900 nm |
| Wavelength Indicator Error | ≤ ±0.1 nm |
| Wavelength Repeatability | ≤ ±0.025 nm |
| Spectral Bandwidth | 0.2, 0.4, 1.0, 2.0 nm multi-level automatic switching |
| Baseline Drift | 0.003 ABS/30 min (static), 0.005 ABS/15 min (dynamic) |
| Grating Line Density | 1800 lines |
| Operating Ambient Temperature | 10℃ to 35℃ |
| Working Environment Humidity | ≤ 80% |
| Detector | Photomultiplier tube |
| Monochromator | Czerny-Turner enhanced |
| Resolving Power | Cu 324.7 nm, 0.2 nm bandwidth, half width 0.2 ± 0.01 nm |
| Lamp-Socket | Turntable-type automatic switching lamp frame |
| Light Source Power Supply | 400 Hz, 1/4 duty cycle pulse on |
| Light Current Adjustment Range | (0 to 10) mA (average current), software adjustment |
| Characteristic Concentration of Copper | 0.025 μg/mL / 1% |
| Detection Limit of Copper | 0.006 μg/mL |
| Burner | 0.5 mm × 100 mm all-titanium burner |
| Repetitiveness | RSD ≤ 0.5% |
| Sprayer | Metal high-efficiency glass spray |
| Atomizer Chamber | Corrosion-resistant all-plastic |
| Safety Guard | Automatic safety protection (acetylene leakage alarm, system closure, etc.) |
| Measuring Method | Air-acetylene flame method |
| Concentration Calculation | Linear regression method (automatic curve fitting and calculation) |
| Repeat Measurements | 1 to 99 times, auto average & content, standard deviation & RSD |
| Result Output | Save and print in multiple formats |
| Communication Interface | Standard RS232, USB extension |
| Operating System | Windows XP / Vista / Windows 7 |
| Professional Software | English professional software |
| Power Consumption | 150 W |
| Power Supply | AC 220 V / 50 Hz |
| Dimension (L × W × H) | 1000 × 400 × 470 mm |
| Weight | 70 kg |
| Accessory | Quantity |
| Air Compressor | 1 Unit |
| Data Processing Workstation | 1 Set |
| Elemental Lamp (Calcium) | 1 Copy |
| Standard Solution (Calcium) | 1 Bottle |
1: How does the wide wavelength range of the Atomic Absorption Spectrophotometer FM-AAS-A101 help in elemental analysis?
Atomic Absorption Spectrophotometer FM-AAS-A101 offers a wavelength range of 185 to 900 nm, enabling detection of a broad spectrum of elements. This versatility helps customers perform multi-element analysis in a single system, saving time and ensuring comprehensive results.
2: What advantages does the multi-lamp preheating feature of the Atomic Absorption Spectrophotometer FM-AAS-A101 provide?
Atomic Absorption Spectrophotometer FM-AAS-A101 supports simultaneous preheating of 3, 4, or 6 lamps, which minimizes waiting time between element testing. This is especially helpful for laboratories that require fast and efficient analysis of multiple samples.
3: How does the automatic optimization function of the Atomic Absorption Spectrophotometer FM-AAS-A101 improve accuracy?
Atomic Absorption Spectrophotometer FM-AAS-A101 automatically adjusts settings for optimal performance, ensuring peak accuracy without requiring manual calibration. This reduces user error and guarantees consistent, reliable results for every test.
4: Why is deuterium background correction important in the Atomic Absorption Spectrophotometer FM-AAS-A101?
Atomic Absorption Spectrophotometer FM-AAS-A101 includes deuterium background correction with online detection, which eliminates interference from non-specific absorption. This ensures that results are accurate and traceable, even in complex samples.
5: How does the Atomic Absorption Spectrophotometer FM-AAS-A101 support laboratory data management?
Atomic Absorption Spectrophotometer FM-AAS-A101 allows saving and printing of reports in multiple formats, making it easy to archive, share, and analyze results. This helps laboratories maintain proper documentation and comply with quality standards.
6: What safety features are included in the Atomic Absorption Spectrophotometer FM-AAS-A101?
Atomic Absorption Spectrophotometer FM-AAS-A101 is equipped with alarms for low pressure, gas leakage, and flame out, along with automatic abnormal condition detection. These safety measures protect both users and the instrument, ensuring smooth and reliable operation.
Fison Atomic Absorption Spectrophotometers offer high precision and sensitivity for detecting metal concentrations in various samples. They feature an advanced optical system with a high-resolution monochromator for enhanced spectral accuracy. These units provide automated sample handling, reducing manual intervention. They include a user-friendly interface and digital controls for easy operation. Our spectrophotometers deliver multiple calibration modes, allowing single and multi-element analysis to ensure versatility.
